Mesh Antennas
Browse and compare antennas for mesh networking devices.
These tests results and suggestions are primarily from the Austin Mesh community by way of both VNA testing and real world use on the mesh. Add your test results here.
Sort By
Categories
Connector Type
Frequency
Status
Price Range
$
to$
Suggested
Gizont NB-IoT
Frequency: 902-928 MHz
VSWR (915MHz): 1.329:1
Connector: SMA Male
Gain: 10 dBi(there is no way this is true)
$6.80 - $15.99
View Details
Suggested
Alfa AOA Omni
Frequency: 902-928 MHz
VSWR (915MHz): 1.057:1
Connector: N-Type Male
Gain: 5 dBi
$13.85 - $16.97
View Details
Suggested
Rokland 5.8dBi Large Profile Fiberglass
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): 1.013:1
Connector: N-Type Male
Gain: 5.8 dBi
$39.97
View Details
Suggested
Rokland 6dBi Low Profile Fiberglass
Frequency: 902-928 MHz
VSWR (915MHz): 1.047:1
Connector: N-Type Female
Gain: 6 dBi
$29.97
View Details
Suggested
ARC Wireless Flat Panel
Frequency: 902-928 MHz
VSWR (915MHz): 1.179:1
Connector: N-Type Female
Gain: 13.2 dBi
$41.95 - $53.55
View Details
Suggested
Canadian Wireless Supply 3 dBi Fiberglass
Frequency: 902-928 MHz
VSWR (915MHz): 1.643:1
Connector: N-Type Male
Gain: 3 dBi
$25.00
View Details
Suggested
CDEBYTE TX915-JKD-20
Frequency: 902-928 MHz
VSWR (915MHz): 1.480:1
Connector: SMA Male
Gain: 3.5 dBi
$1.33 - $8.99
View Details
Suggested
DIYMalls DIY0147
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): N/A
Connector: SMA Male
Gain: 5 dBi
$6.15
View Details
Not Suggested
DSWF 868MHz 12dBi (37.5cm)
Frequency: 862-876 MHz
VSWR (915MHz): N/A
Connector: SMA Male
Gain: 12 dBi(exaggerated)
$3.44
View Details
Suggested
Eifagur Magnetic Base
Frequency: 902-928 MHz
VSWR (915MHz): 1.460:1
Connector: RP-SMA Male
Gain: 5.8 dBi
$26.99
View Details
Suggested

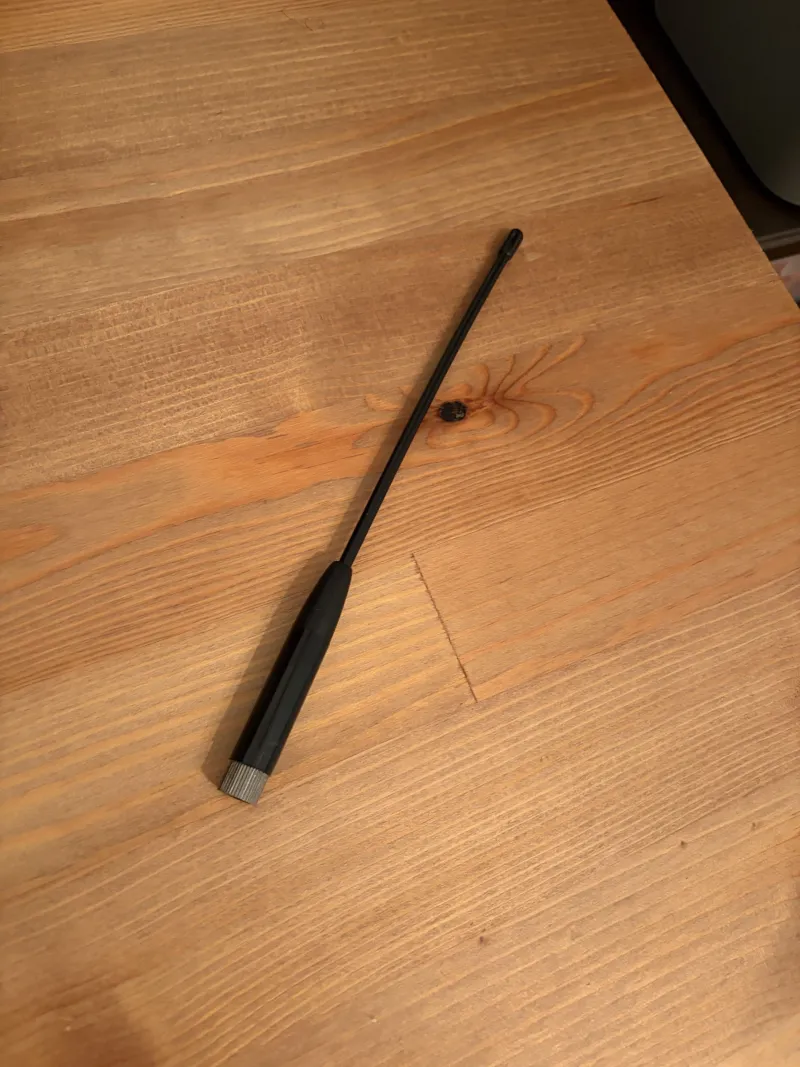

Eifagur Soft Whip
Frequency: 915 MHz
VSWR (915MHz): 1.484:1
Connector: SMA Male
Gain: 10 dBi (claimed)
$16.99
View Details
Not Suggested

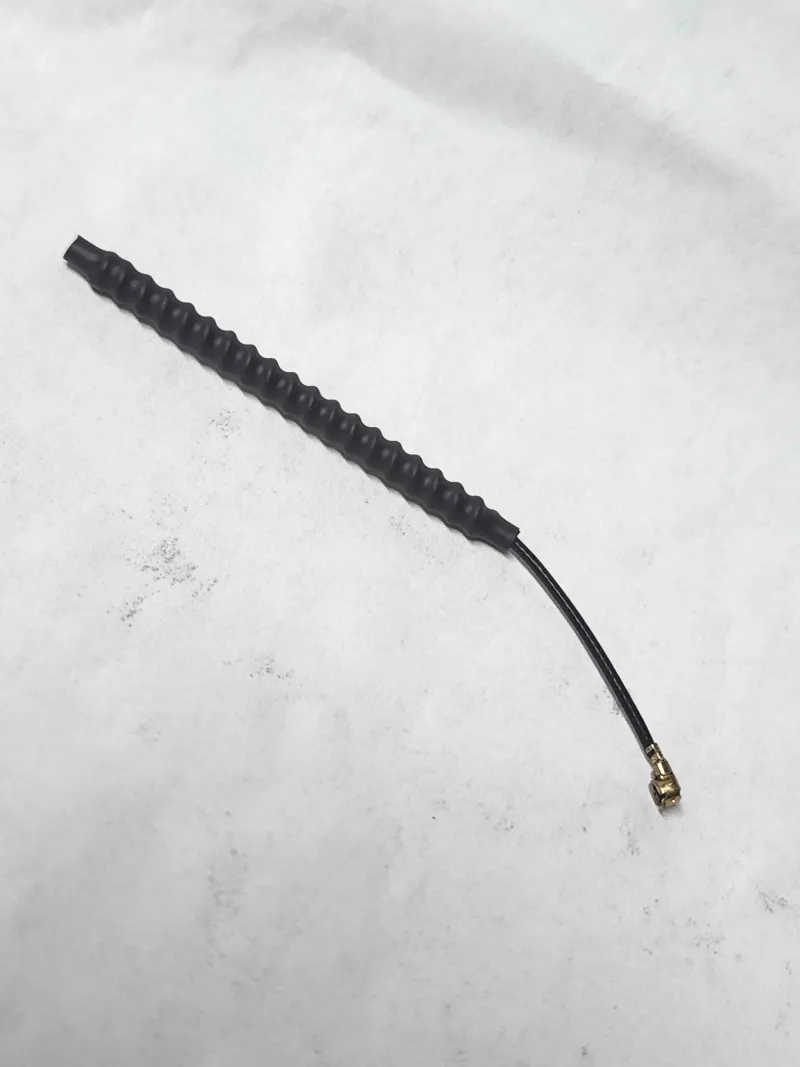

Heltec V3 Stock Internal Antenna
Frequency: 902-928 MHz
VSWR (915MHz): 2.450:1
Connector: u.FL/IPEX
Gain: Unknown
$17.99
View Details
Not Suggested

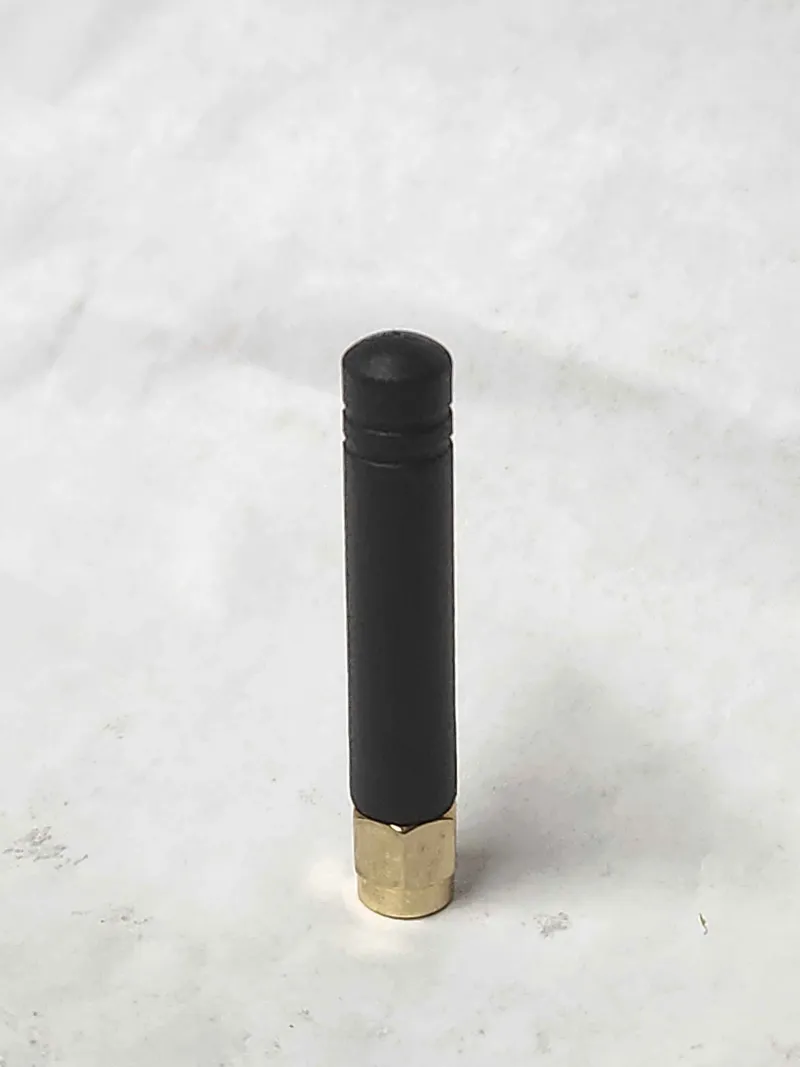

Heltec V3 Stock Stubby Antenna
Frequency: 902-928 MHz
VSWR (915MHz): 1.933:1
Connector: SMA Male
Gain: Unknown
$17.99
View Details
Suggested

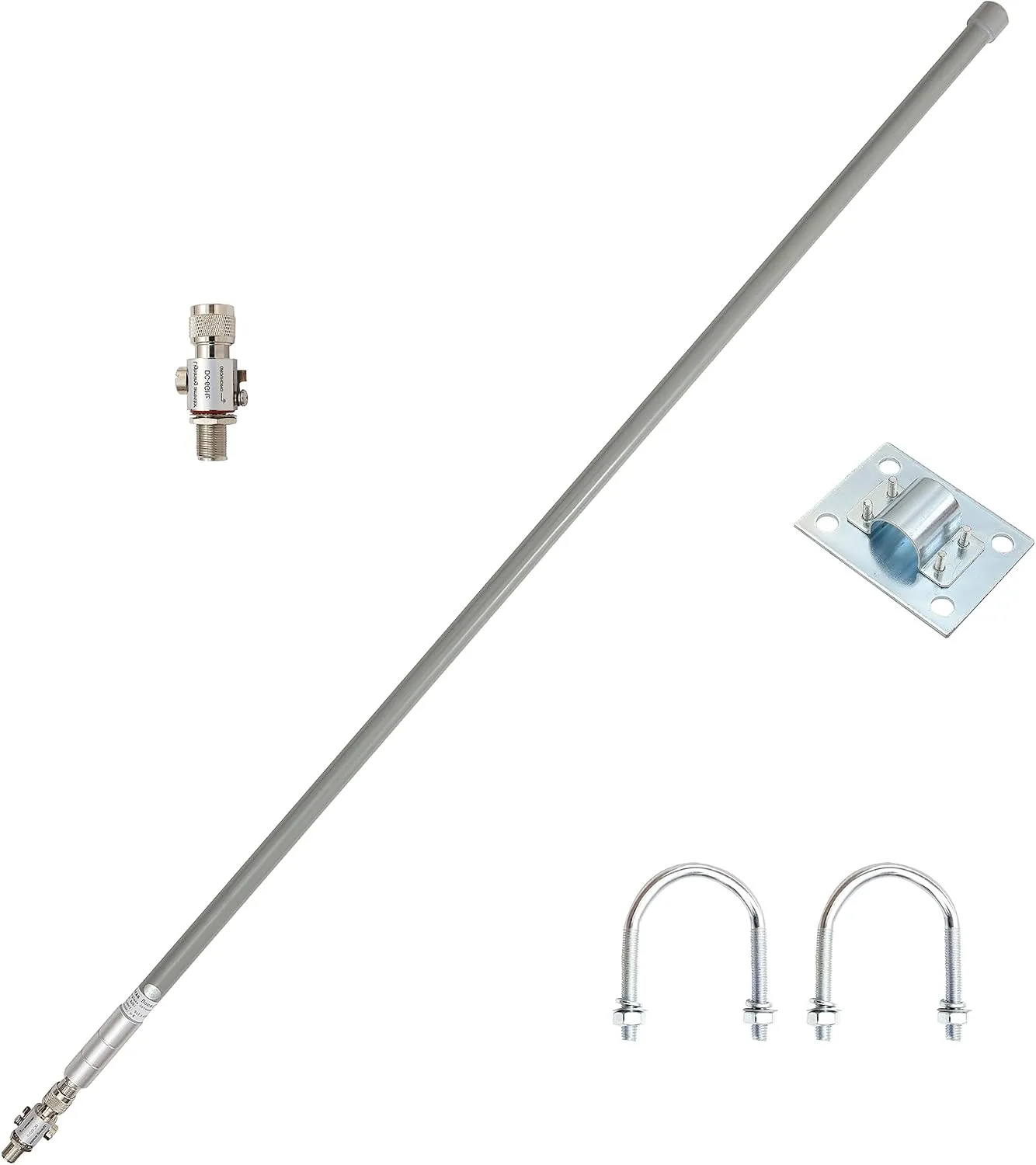

Hexa Boost 8dBi Fiberglass Antenna
Frequency: 902-928 MHz
VSWR (915MHz): 1.124:1
Connector: N-Type Female
Gain: 8 dBi
$56.99
View Details
Not Suggested

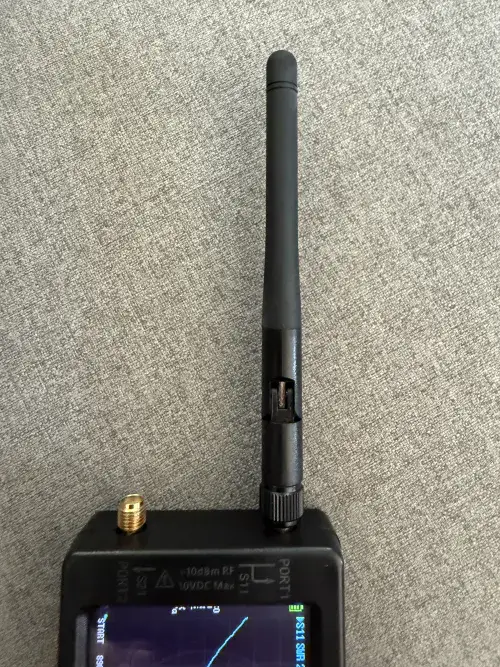

JC Antenna JCG402LR-2
Frequency: 905-920 MHz
VSWR (915MHz): 2.365:1
Connector: SMA Male
Gain: 2 dBi
$4.63
View Details
Not Suggested
Laird MA9-5N Whip
Frequency: 902-928 MHz
VSWR (915MHz): 1.506:1
Connector: N-Type Male
Gain: 5.5 dBi
$18.16 - $21.15
View Details
Suggested
Laird TRA9020S3CBN
Frequency: 902-928 MHz
VSWR (915MHz): 1.335:1
Connector: NMO
Gain: 3 dBi
$48.95
View Details
Not Suggested
LILYGO T-Beam V1.1 Stock Antenna
Frequency: 902-928 MHz
VSWR (915MHz): 6.278:1
Connector: SMA Male
Gain: Unknown
$29.02
View Details
Not Suggested

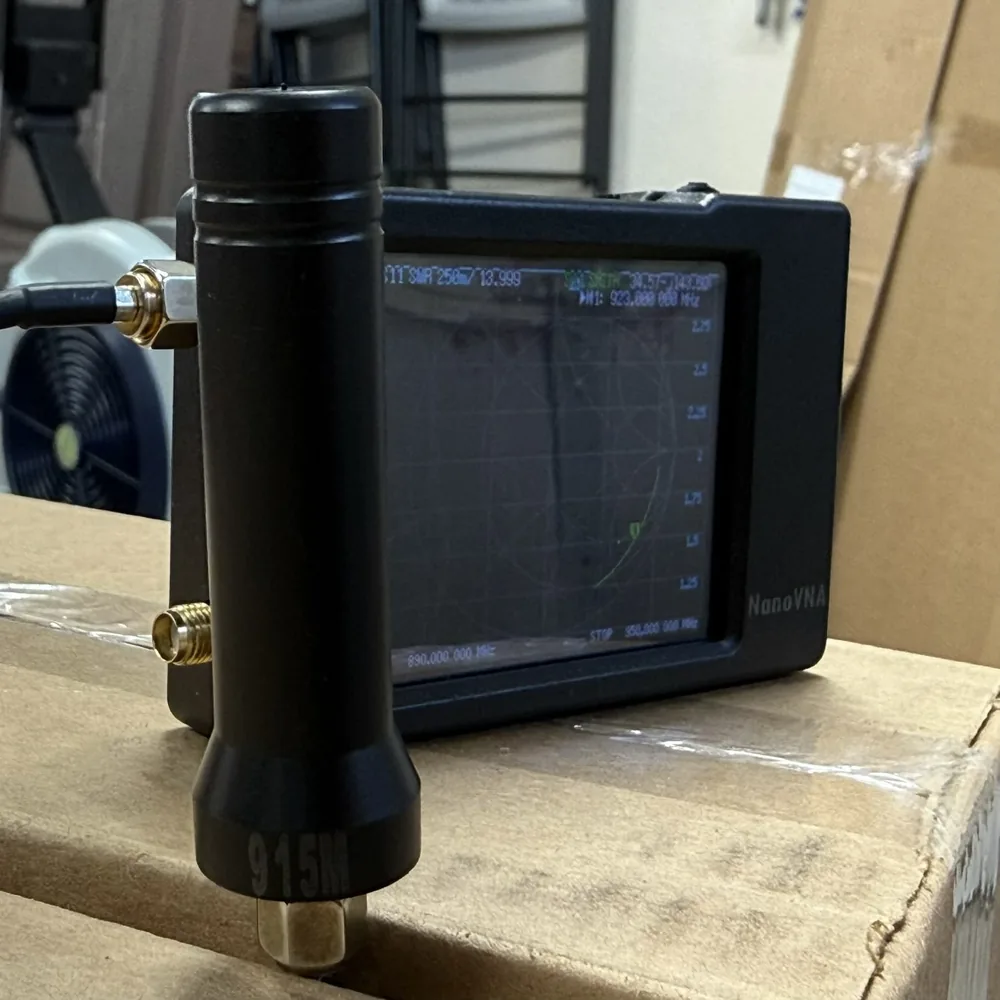

LILYGO T-Echo Stock Antenna
Frequency: 902-928 MHz
VSWR (915MHz): 3.677:1
Connector: SMA Male
Gain: Unknown
$0.00
View Details
Not Suggested

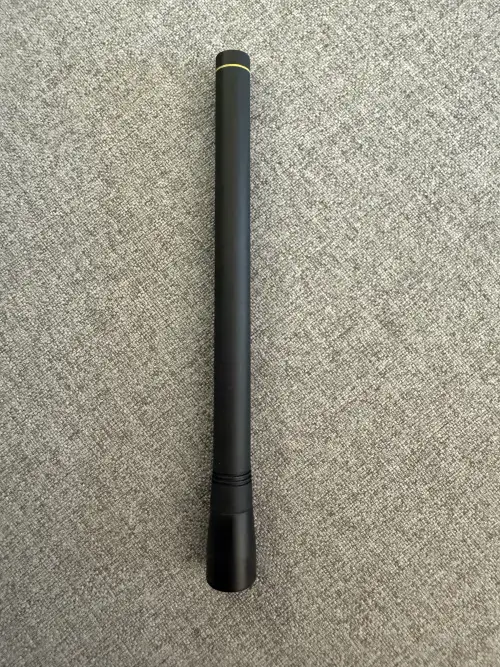

Linx ANT-868-CW-QW Whip
Frequency: 750-950 MHz
VSWR (915MHz): 1.759:1
Connector: RP-SMA Male
Gain: 1.6 dBi
$10.00
View Details
Suggested
Linx PCB Flex
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): 1.704:1
Connector: u.FL/IPEX
Gain: <0 dBi
$4.66 - $6.16
View Details
Suggested

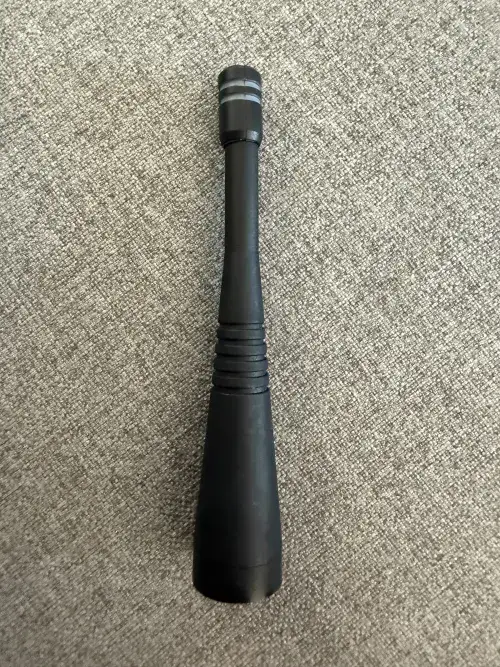

Linx SMA 1/2 Dipole
Frequency: 902-928 MHz
VSWR (915MHz): 1.736:1
Connector: SMA Male
Gain: 1.2 dBi
$8.60 - $15.54
View Details
Not Suggested

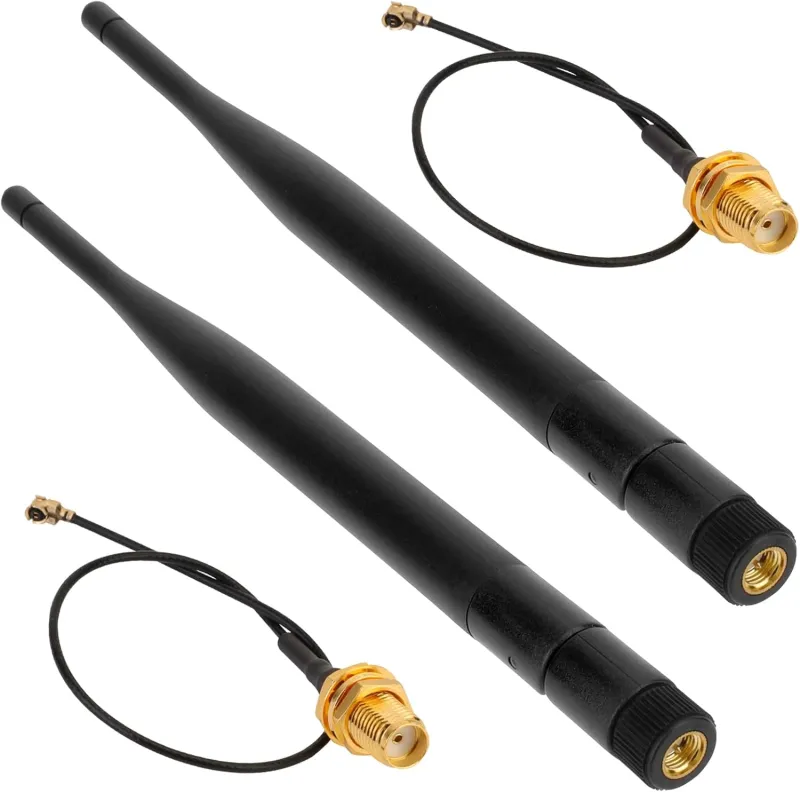

MakerHawk 5dBi LoRa Omni
Frequency: 915 MHz
VSWR (915MHz): 2.544:1
Connector: SMA Male
Gain: 5 dBi (claimed)
$11.99
View Details
Suggested
Maxtena SMA
Frequency: 902-928 MHz
VSWR (915MHz): 1.538:1
Connector: SMA Male
Gain: 4 dBi
$10.49 - $10.50
View Details
Suggested
Molex PCB ISM Dipole
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): 1.551:1
Connector: u.FL/IPEX
Gain: 1.3 dBi
$1.89 - $3.76
View Details
Suggested
muzi works Whip Antenna 17cm
Frequency: 915 MHz
VSWR (915MHz): 1.172:1
Connector: SMA Male
Gain:
$11.90
View Details
Suggested
Pulse Larsen SMA W1063M
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): 1.332:1
Connector: SMA Male
Gain: 1 dBi
$8.51 - $9.33
View Details
Suggested
RAKwireless 3dbi Fiberglass Antenna
Frequency: 900-930 MHz
VSWR (915MHz): 1.215:1
Connector: N-Type Male
Gain: 3 dBi
$27.50 - $38.97
View Details
Suggested

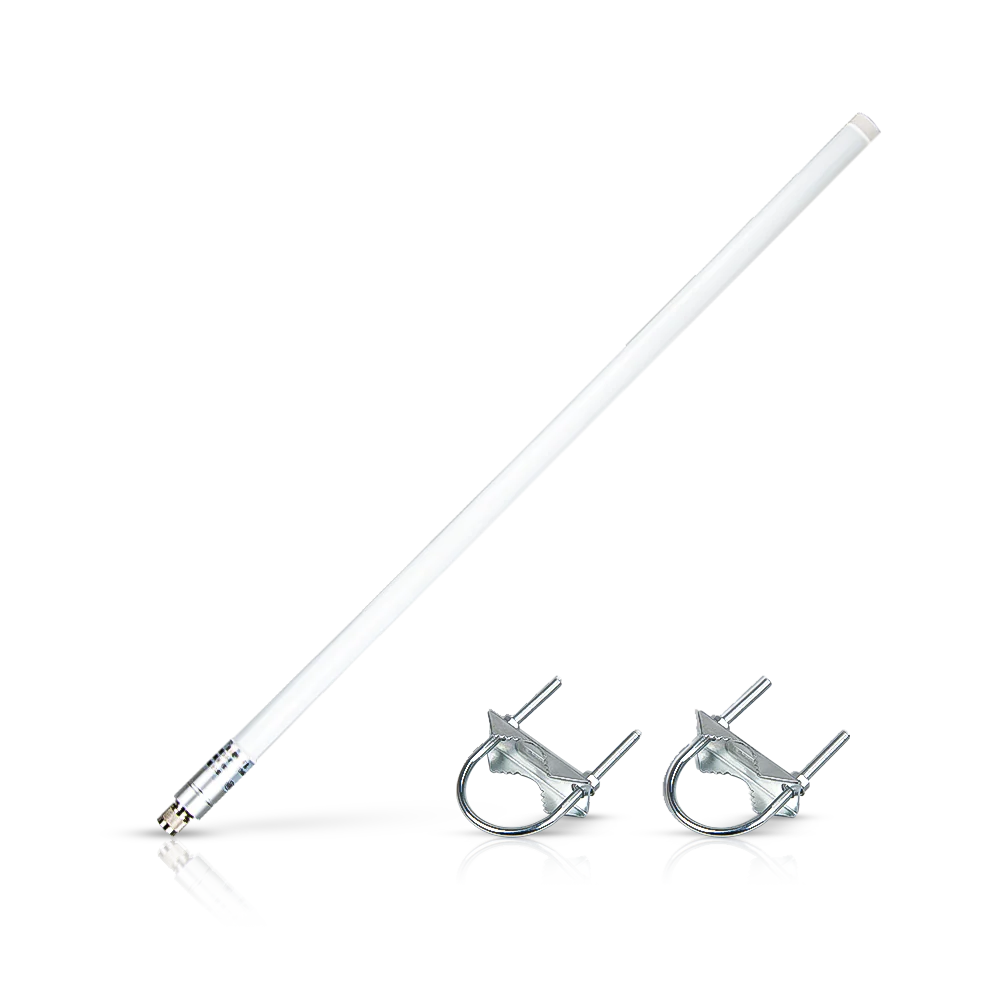

RAKwireless 8dBi Fiberglass Antenna
Frequency: 900-930 MHz
VSWR (915MHz): 1.955:1
Connector: N-Type Male
Gain: 8 dBi
$60.00
View Details
Not Suggested
Seeed Studio Fiberglass
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): 2.088:1
Connector: N-Type Male
Gain: 5 dBi
$35.00
View Details
Suggested
Taoglas TI.16 Whip
Frequency: 902-928 MHz
VSWR (915MHz): 1.210:1
Connector: N-Type Male
Gain: 5 dBi (with ground plane)
$16.73 - $23.56
View Details
Suggested
TE Connectivity ANT-916-CW-RCS
Frequency: 862-876 MHz, 902-928 MHz
VSWR (915MHz): 1.202:1
Connector: RP-SMA Male
Gain: 3.3 dBi
$6.54 - $6.63
View Details
Suggested

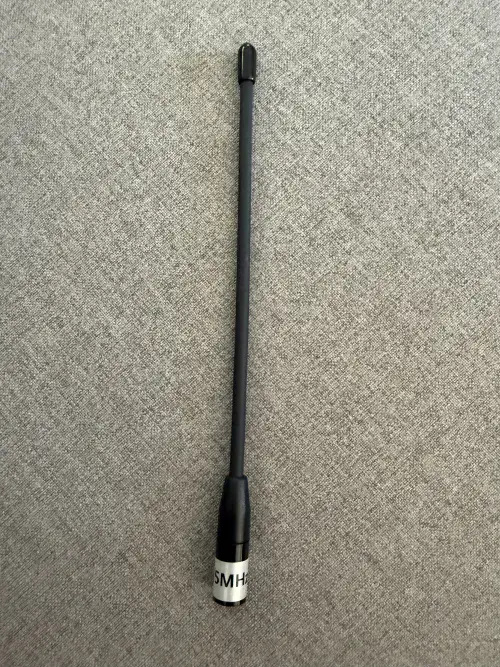

Tenmory 5dBi LoRa Omni
Frequency: 910-920 MHz
VSWR (915MHz): 1.151:1
Connector: SMA Male
Gain: 5 dBi
$13.99
View Details
Suggested
Tenmory TB-CSA21
Frequency: 902-928 MHz
VSWR (915MHz): 1.178:1
Connector: SMA Male
Gain: 3 dBi
$11.99
View Details
Not Suggested
Wio Tracker L1 Pro Stock Antenna
Frequency: 902-928 MHz
VSWR (915MHz): 3.680:1
Connector: RP-SMA Male
Gain: Unknown
$39.90
View Details
Suggested
ZDTECH 7dBi Fiberglass
Frequency: 902-928 MHz
VSWR (915MHz): 1.17:1
Connector: N-Type Male
Gain: 7 dBi
$25.37
View Details
Not Suggested
Ziisor TX915-JZ-5/2dBi
Frequency: 902-928 MHz
VSWR (915MHz): 8.670:1
Connector: SMA Male
Gain: 3 dBi
$2.30 - $5.00
View DetailsMissing an antenna?
Know an antenna that should be listed here? Suggest it and we will add it.
